140MT MPCBs and MCPs

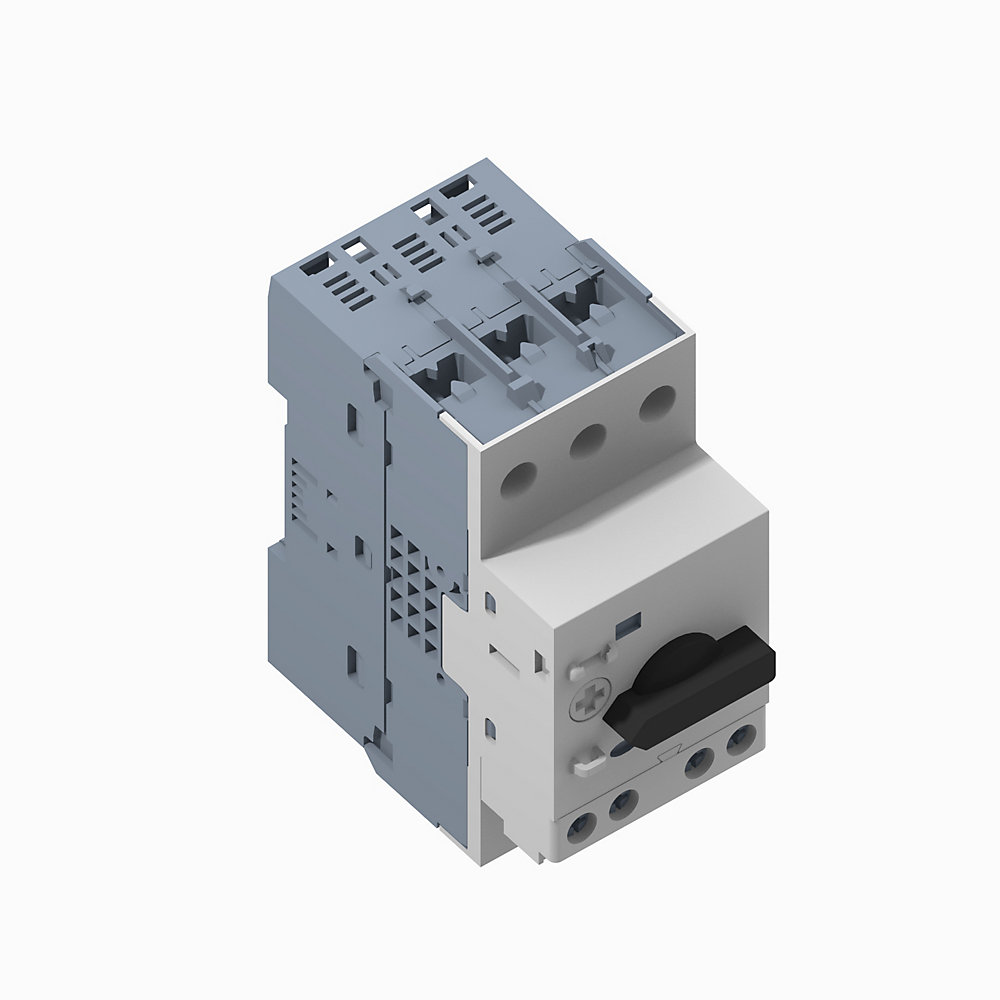

140MT-C3E-C10-DX

MPCB, Standard Magnetic Trip (Fixed at 14 x le), 6.3 - 10 A, Std. Performance, Frame Size C, 2 NO (Bot. Front)

Product Details

SYSTEM VOLTAGE DATA
Supply Voltage480V 60Hz
Maximum Available Fault Current (at the Breaker)0 kA
CIRCUIT BREAKER
Circuit Breaker TypeMotor Protection Circuit Breaker
Adj. Thermal Current Range (A)6.3 - 10A
Frame SizeFrame Size C
Breaking CapacityStandard Breaking Capacity
ApplicationStandard Magnetic Trip (Fixed at 14 x le)
ASSEMBLY
Factory or User Assembled?Factory Assembled
OPTIONS
Side Mount Shunt Trip and Undervoltage ReleaseNone
Front Mount Auxiliary and Trip Contacts2 N.O.
Side Mount Auxiliary and Trip ContactsNone
