140MT MPCBs and MCPs

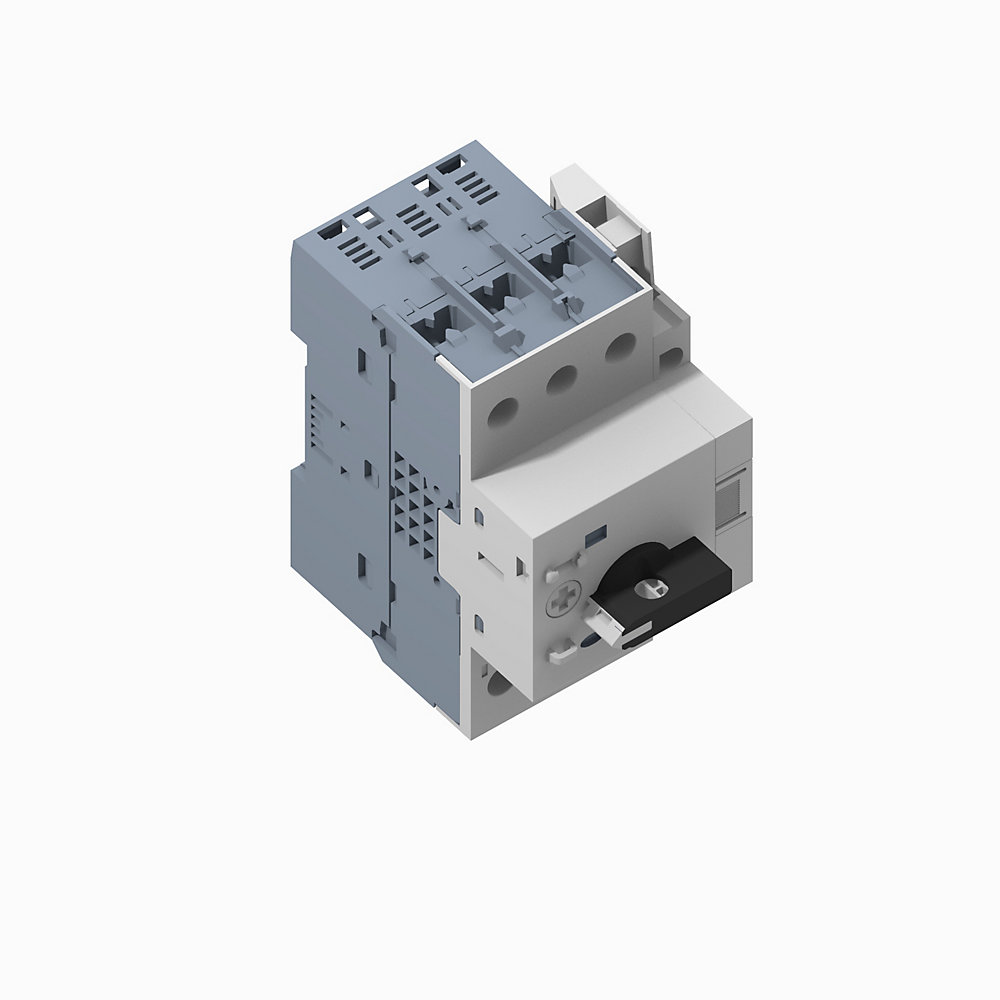

140MT-C3E-C16-KN-XC

MPCB, Standard Magnetic Trip (Fixed at 14 x le), 10 - 16 A, Std. Performance, Frame Size C, 1 NO+1 NC, Rt. Side

Product Details

SYSTEM VOLTAGE DATA
Supply Voltage480V 60Hz
Maximum Available Fault Current (at the Breaker)0 kA
CIRCUIT BREAKER
Circuit Breaker TypeMotor Protection Circuit Breaker
Adj. Thermal Current Range (A)10 - 16A
Frame SizeFrame Size C
Breaking CapacityStandard Breaking Capacity
ApplicationStandard Magnetic Trip (Fixed at 14 x le)
ASSEMBLY
Factory or User Assembled?Factory Assembled
OPTIONS
Side Mount Shunt Trip and Undervoltage ReleaseNone
Front Mount Auxiliary and Trip ContactsNone
Side Mount Auxiliary and Trip Contacts1 N.O. + 1 N.C.
Knobs and AdaptorLockable Twist Knob - Black
