1492 IEC Screw Terminal Blocks

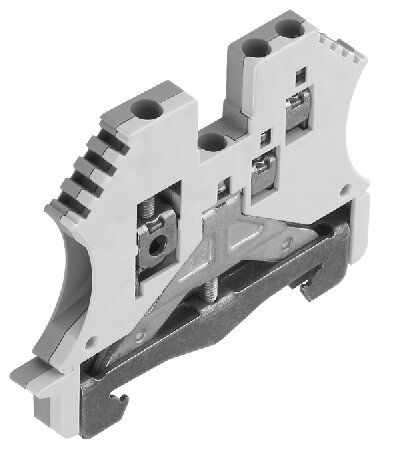

1492-J IEC Terminal Block, One-Circuit Feed-Through Ground Block, 2.5 mm (# 24 AWG - # 12 AWG), 3 Connection points, 2 on one side, Green / Yellow Stripe (Standard),
Product Details
| BLOCK STYLE | |
|---|---|
| Hazardous Location Product Required? | No |
| Base Block Style | Grounding Blocks |
| BASE DATA | |
| Base Block Type | One-Circuit Feed-Through Ground Block |
| DETAIL DATA | |
| Features | 3 Connection points, 2 on one side |
| Maximum Wire Size & Rating | Single Side: UL & CSA: 22-12 AWG IEC: 2.5mm² EEx e II: 2.5mm²/20-14 AWG Twin Side: UL & CSA: 26-12 AWG IEC: 1.5mm² EEx e II: 1.5mm²/20-16 AWG |
| Color | Green / Yellow Stripe (Standard) |
