1492-P Push-in Terminal Blocks
Representative Rendering, Not The Actual Product
1492-P Push-in Terminal Blocks , 4 mm² (AWG 26 - AWG 10),20 A , Control Power Distribution Block with Knife Disconnect/Isolation , End Block ,1 Point Blue
Product Details
| BASIC BLOCK FEATURES | |
|---|---|
| Wire Range (Rated Cross Section) | 4 mm² (AWG 26 - AWG 10) |
| UL/CSA Voltage Rating | 300V AC/DC |
| UL/CSA Current Rating | 20A |
| Width | 6.1 mm |
| Electrical Standards/ Certifications | IEC / UL / CSA / ATEX / IECEx |
| Color | Grey |
| DETAIL DATA | |
| Block Type | Control Power Distribution Block with Knife Disconnect/Isolation |
| Circuit per Block | Single-Circuit |
| Connection Points | 1 Point Blue |
| Number of Levels | End Block |

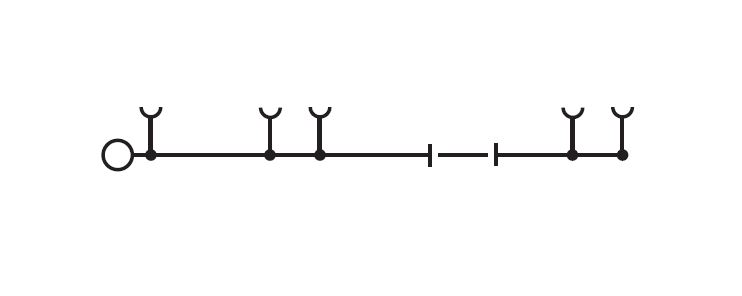

| Wiring Diagram | 1492-P10PD4E-KD |
