1492-P Push-in Terminal Blocks
Representative Rendering, Not The Actual Product
1492-P Push-in Terminal Blocks , 10 mm² ( AWG 20 - AWG 6),51 A , Control Power Distribution Block , Starter Block Ground ,1 Point Red, 1 Point Blue
Product Details
| BASIC BLOCK FEATURES | |
|---|---|
| Wire Range (Rated Cross Section) | 10 mm² ( AWG 20 - AWG 6) |
| UL/CSA Voltage Rating | 150V AC/DC |
| UL/CSA Current Rating | 51A |
| Width | 12 mm |
| Electrical Standards/ Certifications | IEC / UL / CSA / ATEX / IECEx |
| Color | Grey |
| DETAIL DATA | |
| Block Type | Control Power Distribution Block |
| Circuit per Block | Two-Circuits |
| Connection Points | 1 Point Red, 1 Point Blue |
| Number of Levels | Starter Block Ground |

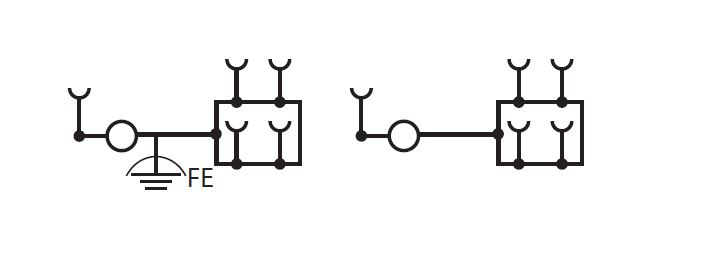

| Wiring Diagram | 1492-P10PD4S-1RE1G |
