1492-P Push-in Terminal Blocks
Representative Rendering, Not The Actual Product
1492-P Push-in Terminal Blocks , 16 mm² ( AWG 18 - AWG 6),62 A , Feed-Through Distribution Block , Single Level ,1 Point On Each Side Per Circuit
Product Details
| BASIC BLOCK FEATURES | |
|---|---|
| Wire Range (Rated Cross Section) | 16 mm² ( AWG 18 - AWG 6) |
| UL/CSA Voltage Rating | 600V AC/DC |
| UL/CSA Current Rating | 62A |
| Width | 12 mm |
| Electrical Standards/ Certifications | IEC / UL / CSA / ATEX / IECEx |
| Color | Blue |
| DETAIL DATA | |
| Block Type | Feed-Through Distribution Block |
| Circuit per Block | Single-Circuit |
| Connection Points | 1 Point On Each Side Per Circuit |
| Number of Levels | Single Level |

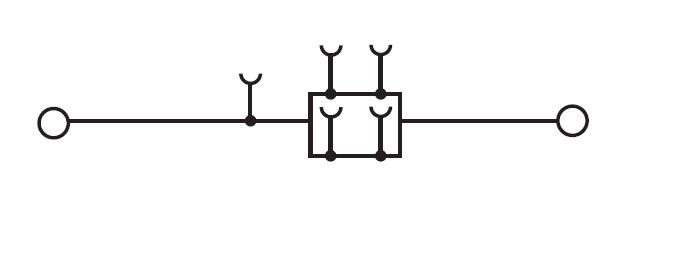

| Wiring Diagram | 1492-P16D-B |
