1492 Wiring Systems Modules
Representative Rendering, Not The Actual Product

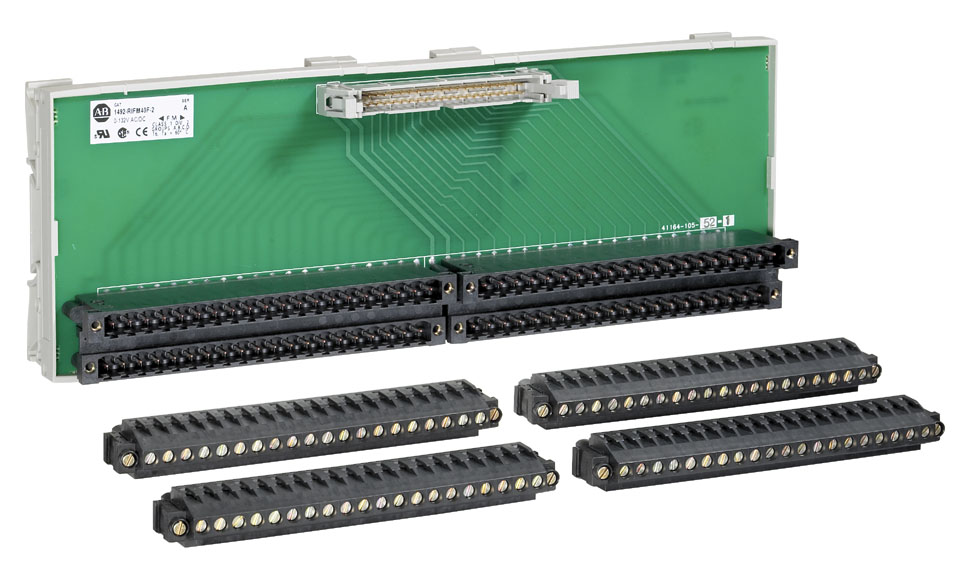

Digital IFM w/field Removable Terminal Block, (RTB) 40-Pin cable header, Feed-through w/Extra terminals, 132Vac/dc , , , Digital Interface Module w/ Removable Terminal Block
Product Details
| I/O MODULE DATA | |
|---|---|
| Please Note: | You must select an I/O Module in order to choose a Pre-Wired Cable with Connectors on Both Ends |
| WIRING SYSTEMS DATA | |
| Product Type | Digital Module with Field Removable Terminal Block |
| Cable Connector Pin Type | 40 Pins |
| Interface Module Style | Feed-Through |
| Terminal Features | Extra Terminal |
| LED or Fuse Voltage | None |
| Field Side Terminals | Two per I/O Connection |
| RTB PLUG ASSEMBLY DATA | |
| Please Note: | 2 RTB plug assemblies are required with this Removable Terminal Block module. The module itself is supplied without any RTB plug assemblies. You should select 2 RTB plug assemblies to complete this configuration. |
Supporting Documentation and Downloads
- Photograph
- Application Notes & Pinout Diagrams
- Specifications
- Label Card 1 of 5 (Not to scale, for reference only)
- Label Card 2 of 5 (Not to scale, for reference only)
- Label Card 3 of 5 (Not to scale, for reference only)
- Label Card 4 of 5 (Not to scale, for reference only)
- Label Card 5 of 5 (Not to scale, for reference only)
- Short Circuit Ratings Data Sheet
