1492 IEC Screw Terminal Blocks

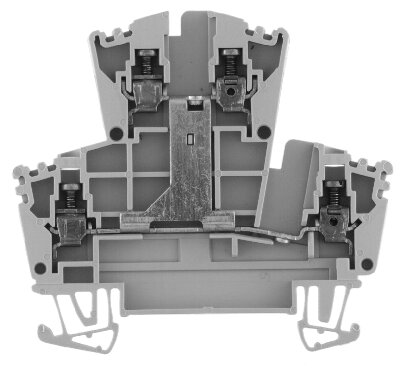

1492-J IEC Terminal Block, Two-Level Feed Through Block with Commoning Bar, 2.5 mm (# 24 AWG - # 12 AWG), 4 Connection points, Gray (Standard),
Product Details
| BLOCK STYLE | |
|---|---|
| Hazardous Location Product Required? | No |
| Base Block Style | Specialty Feed-Through Blocks |
| BASE DATA | |
| Base Block Type | Two-Level Feed Through Block with Commoning Bar |
| DETAIL DATA | |
| Features | 4 Connection points |
| Maximum Wire Size & Rating | UL: 22-12 AWG (20A @600V AC/DC) CSA: 26-12 AWG (10A @300V AC/DC) IEC: 2.5mm² (24A @400V AC/DC) EEx e II: 2.5mm²/20-14 AWG (21A @ 275V AC/DC) |
| Color | Gray (Standard) |
