1492-P Push-in Terminal Blocks
Representative Rendering, Not The Actual Product
1492-P Push-in Terminal Blocks , 6 mm² ( AWG 22 - AWG 8) , Control Power Distribution Block , Starter Block ,1 Point Blue
Product Details
| BASIC BLOCK FEATURES | |
|---|---|
| Wire Range (Rated Cross Section) | 6 mm² ( AWG 22 - AWG 8) |
| UL/CSA Voltage Rating | 300V AC/DC |
| UL/CSA Current Rating | Not Applicable |
| Width | 8.1 mm |
| Electrical Standards/ Certifications | IEC / UL / CSA / ATEX / IECEx |
| Color | Grey |
| DETAIL DATA | |
| Block Type | Control Power Distribution Block |
| Circuit per Block | Single-Circuit |
| Connection Points | 1 Point Blue |
| Number of Levels | Starter Block |

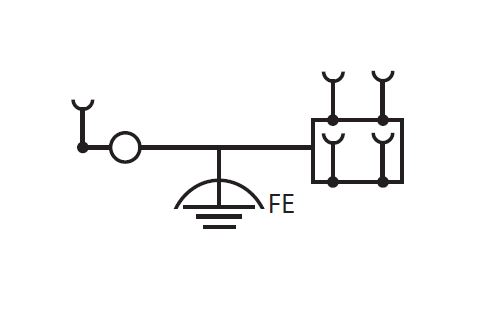

| Wiring Diagram | 1492-PG6PD2S |
