PowerFlex 755TL/TR/TM

20GED3E825MNDNNNNN-C12-P15-P46

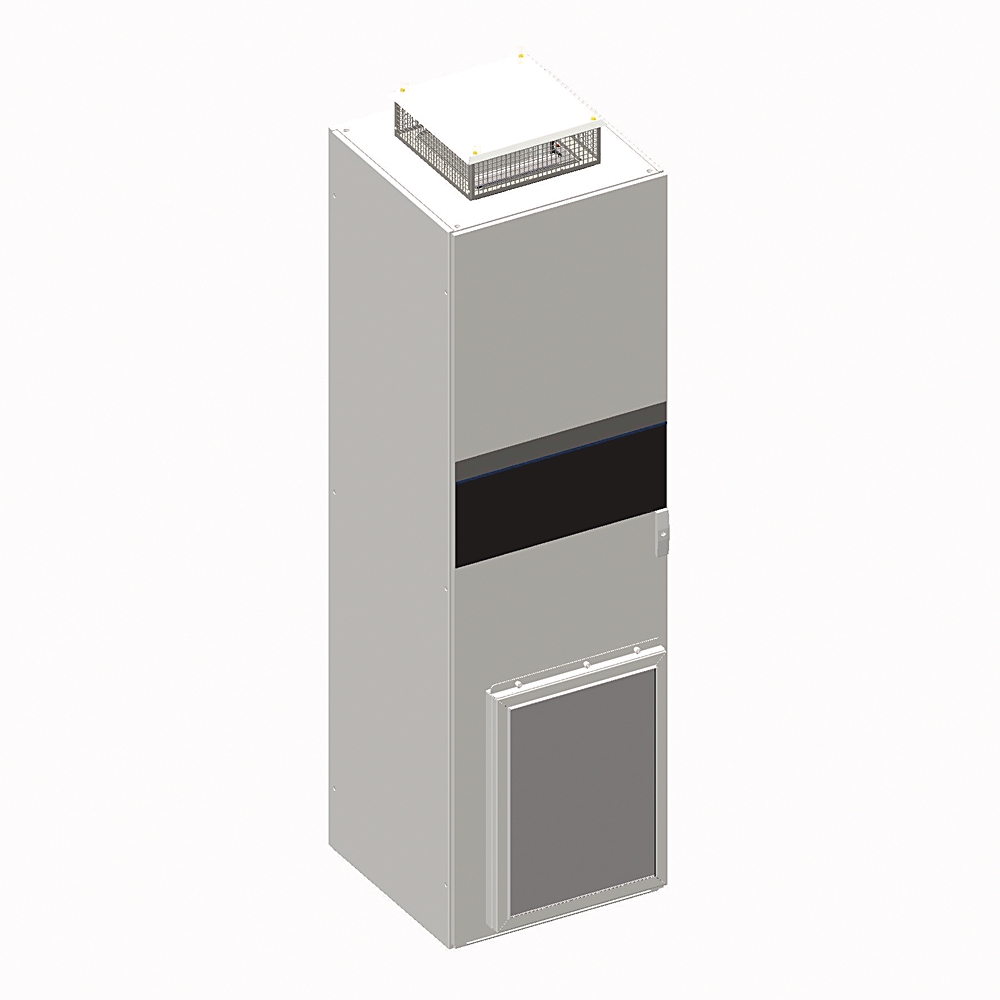

Representative Rendering, Not The Actual Product

PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, with DC Precharge (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD - 1000HP (980A), ND - 900HP (825A), HD - 800HP (760A), 600 VAC, 3PH, Frame 9, Standard EMI Protection & Reflected Wave (dV/dT) Filtering, Door Mounted HIM (20-750-C6S) & TotalFORCE Control

Product Details

BASE DRIVE INFORMATION
Bulletin NumberPowerFlex 755T Drives
Corrosive Gas Protection and Cooling TypeCorrosive Gas Protection (XT), Forced Air
Voltage Class600 VAC, 3PH
Current / Power RatingLD - 1000HP (980A), ND - 900HP (825A), HD - 800HP (760A)
Frame SizeFrame 9
Input TypeCommon Bus Inverter, with DC Precharge (PowerFlex 755TM)
Enclosure TypeType 1/IP21, Floor Mount
Protection & FilteringStandard EMI Protection & Reflected Wave (dV/dT) Filtering
Dynamic BrakingNone
HIM & Control TypeDoor Mounted HIM (20-750-C6S) & TotalFORCE Control
POWER AND CONTROL OPTIONS
Torque AccuracyNo
Control Bay with PodControl Bay with Dual Control Pod
Control TransformerNo
Cable EntryBottom Cable Entry
Cable ExitTop Cable Exit (With Wiring Bay)
System DC Bus BarsSystem DC Bus (4700 Amp)
DC Bus ConditionerStandard Installation - Grounded
Back to Back ConfigurationInline
