PowerFlex 755TM

20GEE4D3K4LNANNNNN-C0

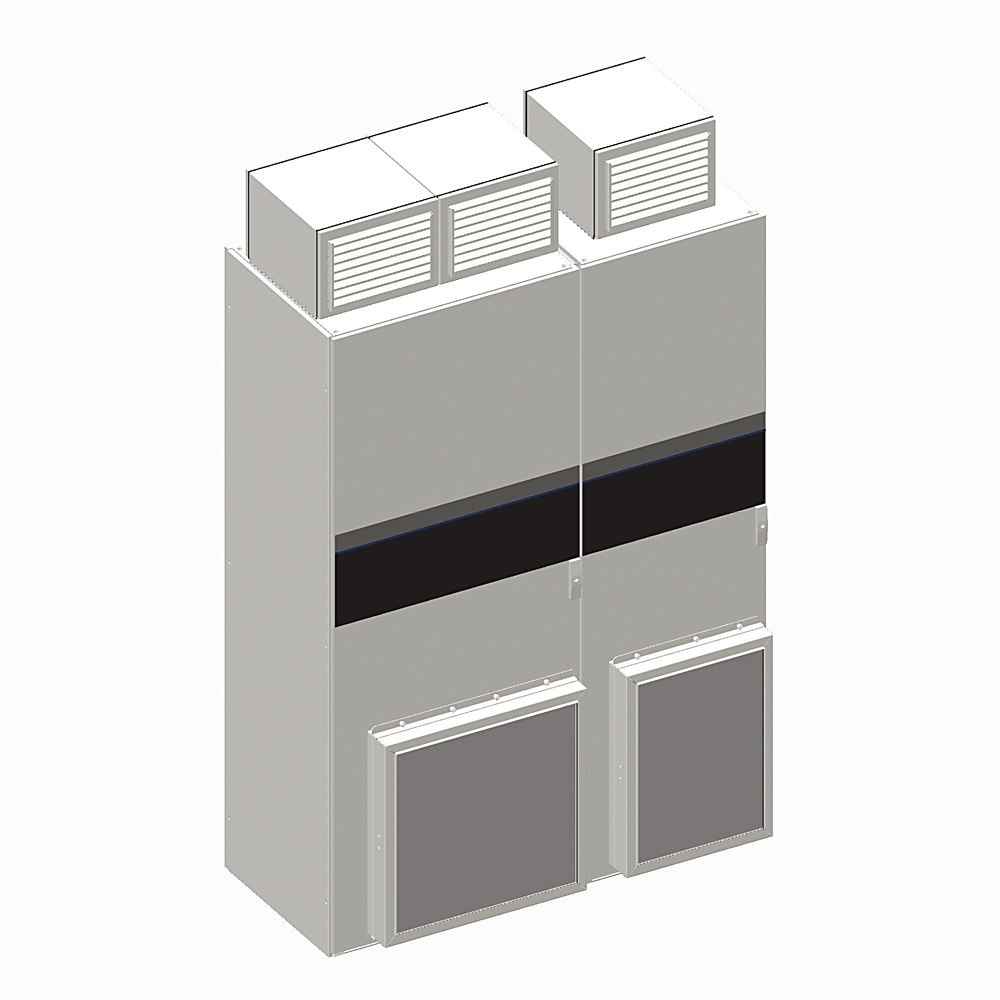

Representative Rendering, Not The Actual Product

PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD - 3300HP (3696A), ND - 3000HP (3404A), HD - 2400HP (2980A), 480 VAC, 3 PH, Frame 12, Standard EMI Protection, No HIM & TotalFORCE Control

Product Details

BASE DRIVE INFORMATION
Bulletin NumberPowerFlex 755T Drives
Corrosive Gas Protection and Cooling TypeCorrosive Gas Protection (XT), Forced Air
Voltage Class480 VAC, 3 PH
Current / Power RatingLD - 3300HP (3696A), ND - 3000HP (3404A), HD - 2400HP (2980A)
Frame SizeFrame 12
Input TypeCommon Bus Inverter, (PowerFlex 755TM)
Enclosure TypeType 12/IP54, Floor Mount
Protection & FilteringStandard EMI Protection
Dynamic BrakingNone
HIM & Control TypeNo HIM & TotalFORCE Control
POWER AND CONTROL OPTIONS
Torque AccuracyYes
Control Bay with PodNo Control Bay
Control TransformerNo
Cable EntryBottom Cable Entry
Cable ExitBottom Cable Exit
System DC Bus BarsSystem DC Bus (4700 Amp)
DC Bus ConditionerStandard Installation - Grounded
Back to Back ConfigurationInline
