PowerFlex 755TL/TR/TM

20GEE4D430LNDNNNNN-C12-P46

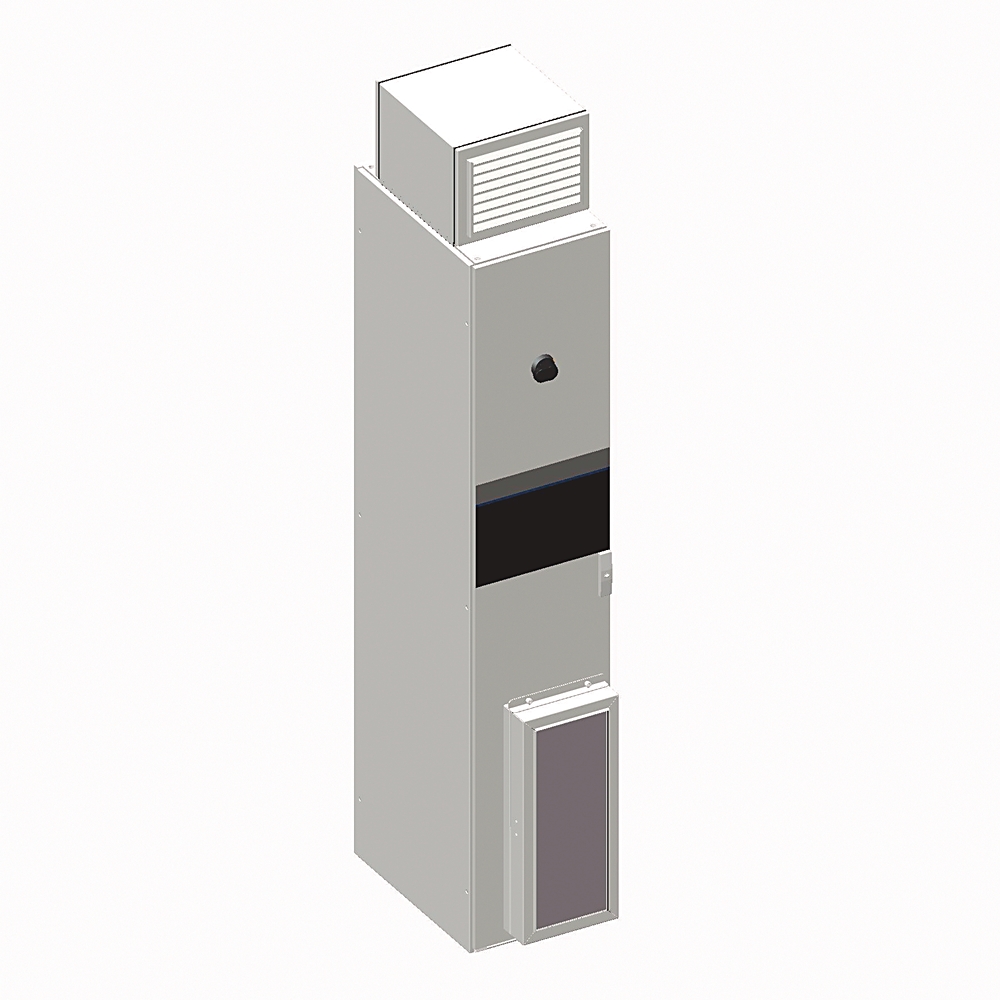

Representative Rendering, Not The Actual Product

PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD - 400HP (485A), ND - 350HP (430A), HD - 300HP (361A), 480 VAC, 3 PH, Frame 8, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control

Product Details

BASE DRIVE INFORMATION
Bulletin NumberPowerFlex 755T Drives
Corrosive Gas Protection and Cooling TypeCorrosive Gas Protection (XT), Forced Air
Voltage Class480 VAC, 3 PH
Current / Power RatingLD - 400HP (485A), ND - 350HP (430A), HD - 300HP (361A)
Frame SizeFrame 8
Input TypeCommon Bus Inverter, (PowerFlex 755TM)
Enclosure TypeType 12/IP54, Floor Mount
Protection & FilteringStandard EMI Protection
Dynamic BrakingNone
HIM & Control TypeDoor Mounted HIM (20-750-C6S) & TotalFORCE Control
POWER AND CONTROL OPTIONS
Torque AccuracyNo
Control Bay with PodControl Bay with Dual Control Pod
Control TransformerNo
Cable EntryBottom Cable Entry
Cable ExitBottom Cable Exit
System DC Bus BarsSystem DC Bus (4700 Amp)
DC Bus ConditionerStandard Installation - Grounded
Back to Back ConfigurationInline
