PowerFlex 700

20BD156A0NNNACD0

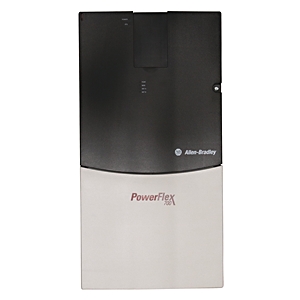

Representative Rendering, Not The Actual Product

PowerFlex700 AC Drive, 480 VAC, 3 PH, 156 Amps, 125 HP Normal Duty, 100 HP Heavy Duty, IP20 / Type 1, with conformal coating, No HIM (Blank Plate), No Brake IGBT, Without Drive Mounted Brake Resistor, Second Environment Filter per CE EMC directive (89/336/EEC), ControlNet (Coax) - DPI Module, Vector Control with 120V I/O, No Feedback

Product Details

LIFECYCLE STATUS NOTE
LifeCycle Status NotePowerFlex 700 Frame 7-10 Drives are now Discontinued. We recommend that you consider the new generation PowerFlex 755 drive family as an alternative.
BASE DRIVE INFORMATION
Input Voltage480 VAC, 3 PH
Output Current156 Amps
EnclosureIP20 / Type 1, with conformal coating
Frame SizeFrame Size 6
Output Current InformationOutput Amps: 156A Cont, 188A 1 Min, 250A 3 Sec
I/OVector Control with 120V I/O
Brake IGBTNo Brake IGBT
Brake ResistorNo Brake Resistor
EMC Filtering OptionsSecond Environment Filter per CE EMC directive (89/336/EEC)
OPTIONS INFORMATION
Base Plus OptionsFactory Assembled
Human Interface ModuleNo HIM (Blank Plate)
Internal Communication ModuleControlNet (Coax)
Feedback OptionNo Feedback

Replacement Parts

Product TypeBase Drive(s) [Level 3]
Catalog Number20BD156A0ANNAND0
DescriptionBase Replacement Drive NO OPTIONS
Quantity1
Product TypeBase Drive(s) [Level 3]
Catalog NumberSK-G9-QOUT1-F6
DescriptionPowerFlex 700 Frame 6 IGBT Kit
Quantity1
Product TypeBase Drive(s) [Level 3]
Catalog NumberSK-G9-SCR1-F6
DescriptionPowerFlex 700 Frame 6 SCR Kit
Quantity3
Product TypeDrive Option(s)
Catalog Number20-HIM-A0
DescriptionBlank Plate
Quantity1
Product TypeDrive Option(s)
Catalog Number20-COMM-C
DescriptionControlNet Communications Adapter (Coax)
Quantity1
Product TypeLevel 1 Spare Part(s) - Recommended Maintenance and Spare Parts
Catalog Number20B-VECTB-D0
DescriptionVector Control Cassette with 115 VAC I/O Option Board Series B
Quantity1
Product TypeLevel 1 Spare Part(s) - Recommended Maintenance and Spare Parts
Catalog NumberSK-G9-MOV1-F6
DescriptionMOV Assembly 200V & 400V Class Frame 6 (All Ratings)
Quantity1
Product TypeLevel 1 Spare Part(s) - Recommended Maintenance and Spare Parts
Catalog NumberSK-G9-PRE1-V480
DescriptionPrecharge Board (AC input drives only)
Quantity1
Product TypeLevel 1 Spare Part(s) - Recommended Maintenance and Spare Parts
Catalog NumberSK-G9-PB1-D156
Description156A 400/480V Power Interface Board
Quantity1
Product TypeLevel 1 Spare Part(s) - Recommended Maintenance and Spare Parts
Catalog NumberSK-G9-PWRS1-D0
DescriptionPF700 Power Supply Board Frame 5 & 6 400/480V
Quantity1
Product TypeLevel 2 Spare Part(s) - Circuit Boards and Sub-Assemblies
Catalog NumberSK-G9-FAN1-F6
DescriptionHeatsink Fan
Quantity1
Product TypeLevel 2 Spare Part(s) - Circuit Boards and Sub-Assemblies
Catalog NumberSK-G9-CT1-F6
DescriptionCurrent Transducer
Quantity1
Product TypeLevel 2 Spare Part(s) - Circuit Boards and Sub-Assemblies
Catalog NumberSK-G9-XFMR1-F6
DescriptionFan Transformer 400V & 600V Class
Quantity1
Product TypeLevel 2 Spare Part(s) - Circuit Boards and Sub-Assemblies
Catalog NumberSK-G9-XFMR2-F6D
DescriptionFan Transformer 400V Class
Quantity1
Product TypeMiscellaneous Hardware and Cables
Catalog NumberSK-G9-TB1-S1
DescriptionRemoveable I/O Terminal Block
Quantity1
Product TypeMiscellaneous Hardware and Cables
Catalog NumberSK-G1-CVR1-F6
DescriptionFront Cover, Upper IP20 NEMA Type 1 Frame 6
Quantity1
Product TypeMiscellaneous Hardware and Cables
Catalog NumberSK-G1-CVR2-F6
DescriptionFront Cover, Lower IP20 NEMA Type 1 Frame 6
Quantity1
Product TypeMiscellaneous Hardware and Cables
Catalog NumberSK-G9-CPLT1-F6
DescriptionConduit Box Frame 6
Quantity1
Product TypeMiscellaneous Hardware and Cables
Catalog NumberSK-G9-PLAS1-F06
DescriptionPlastic Cassette Kit
Quantity1
