PowerFlex 755TM

20GED3E1K5MNDNNNNN-C0-C11

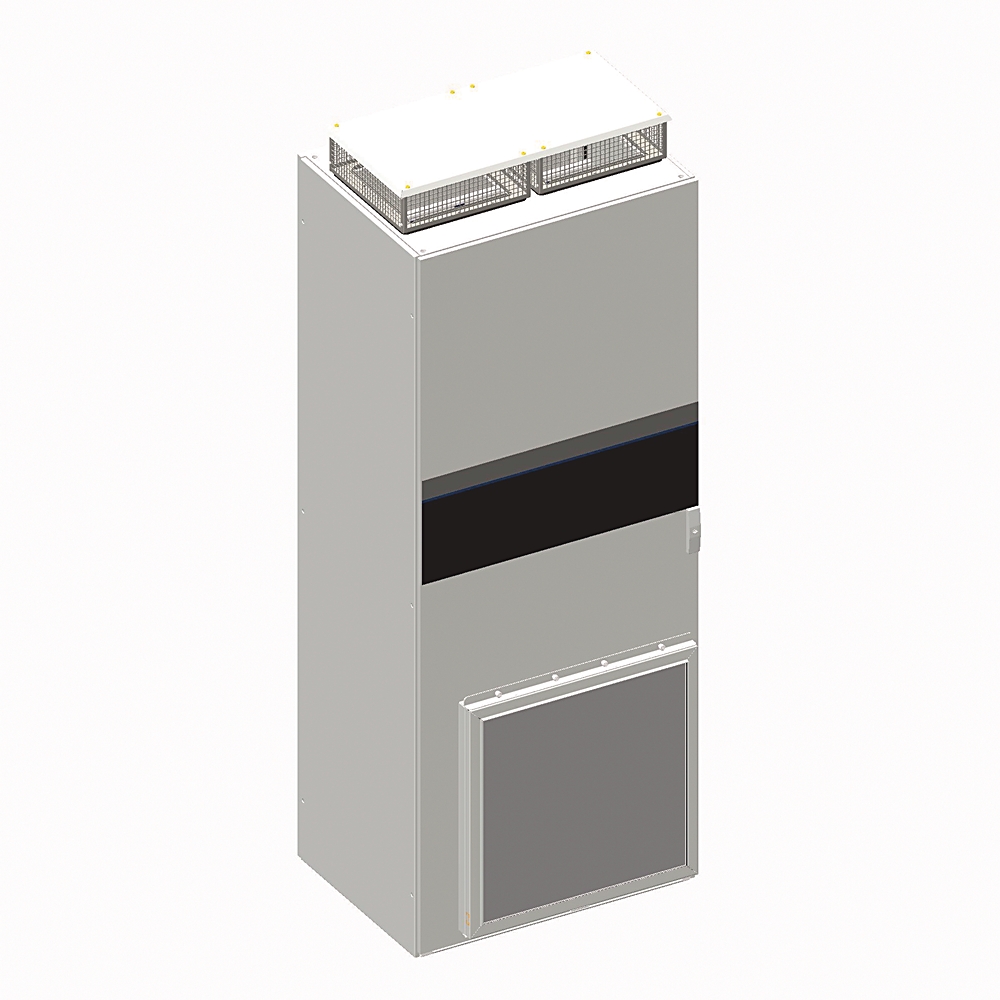

Representative Rendering, Not The Actual Product

PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, with DC Precharge (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD - 1600HP (1624A), ND - 1500HP (1430A), HD - 1250HP (1220A), 600 VAC, 3PH, Frame 10, Standard EMI Protection & Reflected Wave (dV/dT) Filtering, Door Mounted HIM (20-750-C6S) & TotalFORCE Control

Product Details

BASE DRIVE INFORMATION
Bulletin NumberPowerFlex 755T Drives
Corrosive Gas Protection and Cooling TypeCorrosive Gas Protection (XT), Forced Air
Voltage Class600 VAC, 3PH
Current / Power RatingLD - 1600HP (1624A), ND - 1500HP (1430A), HD - 1250HP (1220A)
Frame SizeFrame 10
Input TypeCommon Bus Inverter, with DC Precharge (PowerFlex 755TM)
Enclosure TypeType 1/IP21, Floor Mount
Protection & FilteringStandard EMI Protection & Reflected Wave (dV/dT) Filtering
Dynamic BrakingNone
HIM & Control TypeDoor Mounted HIM (20-750-C6S) & TotalFORCE Control
POWER AND CONTROL OPTIONS
Torque AccuracyYes
Control Bay with PodControl Bay with Single Control Pod
Control TransformerNo
Cable EntryBottom Cable Entry
Cable ExitBottom Cable Exit
System DC Bus BarsSystem 3000A Aluminum Bus Bar
DC Bus ConditionerStandard Installation - Grounded
Back to Back ConfigurationInline
