PowerFlex 755TL/TR/TM

20JEF3D4K0JNDNNNNN-C1-P50-P60

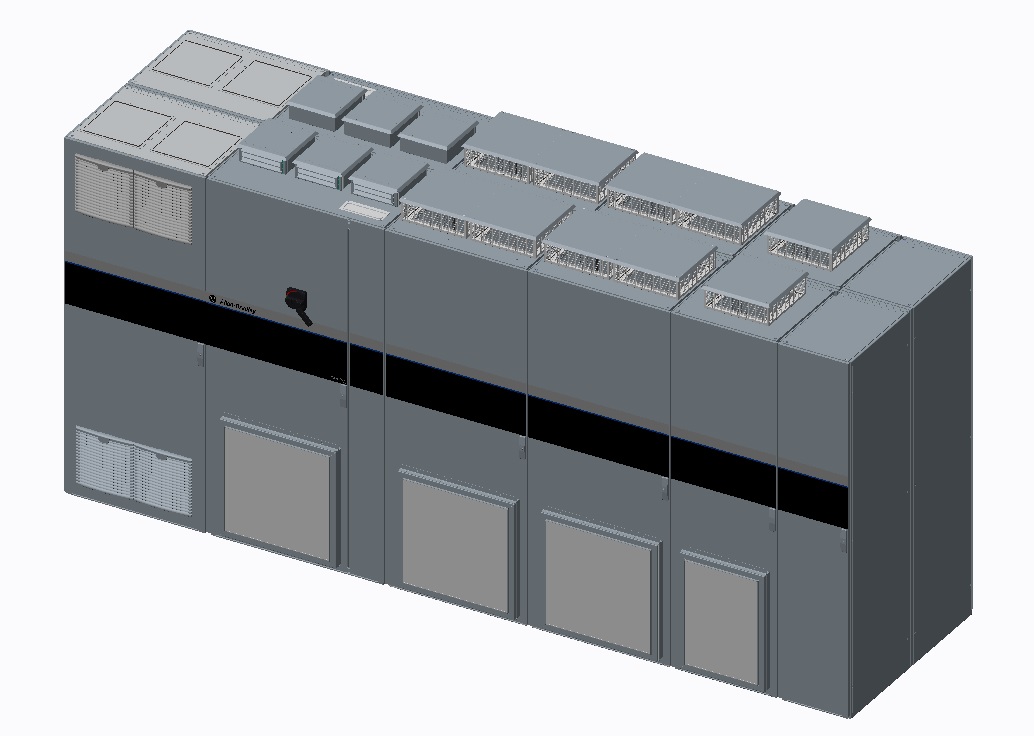

Representative Rendering, Not The Actual Product

PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD - 3149kW (4527A), ND - 2912kW (4186A), HD - 2430kW (3493A), 480 VAC, 3 PH, Frame 13, Auxiliary EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control

Product Details

BASE DRIVE INFORMATION
Bulletin NumberPowerFlex 755T Bus Supplies
Corrosive Gas Protection and Cooling TypeCorrosive Gas Protection (XT), Forced Air
Voltage Class480 VAC, 3 PH
Current / Power RatingLD - 3149kW (4527A), ND - 2912kW (4186A), HD - 2430kW (3493A)
Frame SizeFrame 13
Input TypeRegenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM)
Enclosure TypeType 1/IP21, Floor Mount
Protection & FilteringAuxiliary EMI Protection
Dynamic BrakingNone
HIM & Control TypeDoor Mounted HIM (20-750-C6S) & TotalFORCE Control
POWER AND CONTROL OPTIONS
Torque AccuracyNo
Control Bay with PodNo Control Bay
Control TransformerControl Transformer (Internal 3kVA)
Cable EntryBottom Cable Entry
Cable ExitBottom Cable Exit
System DC Bus BarsSystem 3000A Aluminum Bus Bar
DC Bus ConditionerStandard Installation - Ungrounded
Back to Back ConfigurationBack to Back

Replacement Parts

Product TypeDrive Option(s)
Catalog Number20-750-MACP-CD-TVSS
DescriptionPowerFlex 755T Kit, AC Precharge, TVSS Module, 400/480V, IP00
Quantity1
Product TypeDrive Option(s)
Catalog Number20-750-MACPC-TDR
DescriptionPowerFlex 755T Kit, AC Precharge, Time Delay Relay, 400/480/600/690V, IP00
Quantity1
Product TypeDrive Option(s)
Catalog Number20-750-MACPC1-CD
DescriptionPowerFlex 755T Kit, AC Precharge Control Board, IP00, 400/480V
Quantity1
Product TypeDrive Option(s)
Catalog NumberSK-RM-PLI1-F8
DescriptionPowerFlex 755T Kit, Power Module/Filter, PLI Board
Quantity1
Product TypeDrive Option(s)
Catalog NumberSK-RM-MCB1-PF755
DescriptionPowerFlex 755T Kit, Regenerative/Low Harmonic/Inverter Main Control Board
Quantity1
Product TypeDrive Option(s)
Catalog NumberSK-RM-EMCFB1
DescriptionPowerFlex 755T Kit, EMC Filter Board
Quantity1
Product TypeDrive Option(s)
Catalog NumberSK-RM-PODBP1
DescriptionPowerFlex 755T Kit, Control POD Backplane Board
Quantity1
Product TypeDrive Option(s)
Catalog NumberSK-RM-INVFAN1-F8
DescriptionPowerFlex 755T Kit, Power/Filter Module, Fan Assembly
Quantity1
Product TypeDrive Option(s)
Catalog NumberSK-RM-PODFAN1-F8
DescriptionPowerFlex 755T Kit, Control Pod, Stiring Fan Assembly
Quantity1
Product TypeDrive Option(s)
Catalog NumberSK-RM-DCFUSE1-F8
DescriptionPowerFlex 755T Kit, Power Bay, Inv/Con DC Input Fuse Kit, (400V/480V, F8...F12), 170M6467
Quantity1
Product TypeDrive Option(s)
Catalog NumberSK-RM-INVFAN1-FUSE
DescriptionPowerFlex 755T Kit, Power/Filter Module Fan, IP54 Exhaust Fan, Fuse Kit
Quantity1
Product TypeDrive Option(s)
Catalog NumberSK-RM-INV-JMPR-F8
DescriptionPowerFlex 755T Kit, IGBT Power Structure Jumpers, P1 and P2
Quantity1
Product TypeDrive Option(s)
Catalog NumberSK-RM-GRNDCLMP-185
DescriptionPowerFlex 755T Kit, Ground Clamps, 70-185mm
Quantity1
Product TypeDrive Option(s)
Catalog NumberSK-RM-GRNDCLMP-75
DescriptionPowerFlex 755T Kit, Ground Clamps, 35-75mm
Quantity1
Product TypeDrive Option(s)
Catalog NumberSK-RM-GRNDCLMP-16
DescriptionPowerFlex 755T Kit, Ground Clamps, 2.5-16mm
Quantity1
Product TypeDrive Option(s)
Catalog NumberSK-RM-GRNDCLMP-50
DescriptionPowerFlex 755T Kit, Ground Clamps, 16-50mm
Quantity1
Product TypeDrive Option(s)
Catalog Number20-750-HRDWR-BUS
DescriptionPowerFlex 755T Kit, Extruded Bus Hardware Kit
Quantity1
Product TypeDrive Option(s)
Catalog Number20-750-MCPOD1-F8M
DescriptionPowerFlex 755T Kit, Single Control Pod Assembly, Inverter & Regenerative AFE, IP00, Frame 8M-12M
Quantity1
Product TypeDrive Option(s)
Catalog Number20-750-MFTB1-F8
DescriptionPowerFlex 755T Kit, Fiber Transciever Board
Quantity1
Product TypeDrive Option(s)
Catalog Number20-750-MFOC-2K2
DescriptionPowerFlex 755T Kit, Fiber Optic Cable, 2200mm
Quantity1
Product TypeDrive Option(s)
Catalog Number20-750-MFOC-3K2
DescriptionPowerFlex 755T Kit, Fiber Optic Cable, 3200mm
Quantity1
Product TypeDrive Option(s)
Catalog Number20-750-MDCBUS-COND
DescriptionPowerFlex 755T Kit, DC Bus Conditioner, IP00, Frame 8M-12M
Quantity1
Product TypeDrive Option(s)
Catalog Number20-750-MINV-ATIP
DescriptionPowerFlex 755T Kit, Roll-In Module Stabilizer Mechanism, IP00, Frame 8M
Quantity1
Product TypeDrive Option(s)
Catalog Number20-750-MCART1
DescriptionPowerFlex 755T Kit, Roll-In Installation Cart, Frame 8M
Quantity1
Product TypeDrive Option(s)
Catalog Number20-750-MRAMP1
DescriptionPowerFlex 755T Kit, Service Ramp, Power Module
Quantity1
